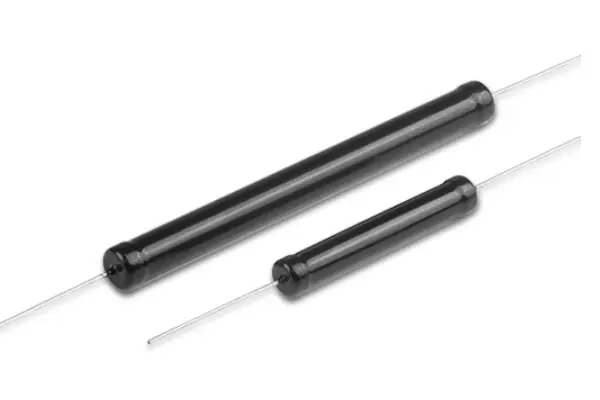

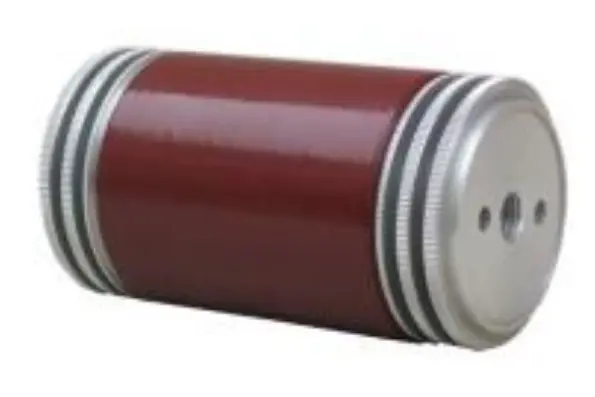

Premium Carbon Composite Energy Absorbing Resistor - Ideal PCB Energy Absorption Resistor for High-Frequency Power Applications
Discover our advanced carbon composite energy absorbing resistor, specifically engineered for demanding PCB applications requiring superior energy absorption capabilities. This high-performance PCB energy absorption resistor delivers exceptional pulse load handling and frequency response for industrial power systems.
Key Features of Our Carbon Composite Energy Absorbing Resistor
Superior High-Frequency Performance
Our carbon composite energy absorbing resistor operates effectively at frequencies up to megahertz levels, making it the perfect PCB energy absorption resistor for high-frequency applications in power transmission and traction systems.
Advanced Pulse Load Capability
- Exceptional energy absorption: Handles random high-pulse energy releases
- Multiple pulse durations: 1.2/50μs, 10/100μs, and 500/500μs impulse ratings
- High-energy applications: Ideal for pulse power supplies and industrial equipment
Compact PCB-Compatible Design
This PCB energy absorption resistor features:
- Through-hole PCB mounting for easy integration
- Space-efficient compact dimensions
- Standard PCB lead spacing configurations
Robust Construction & Safety Standards
- UL94-V0 rated materials for enhanced fire resistance
- High-temperature epoxy encapsulation
- Operating temperature range: 150°C continuous, 200°C intermittent
Technical Specifications
Resistance Range & Power Ratings
| CW | 6Ω - 1.5KΩ | 2.5W | 400J |
| CX | 2Ω - 400Ω | 3.5W | 700J |
| CY | 2Ω - 700Ω | 4.5W | 1400J |
| CZ | 2Ω - 500Ω | 5.5W | 2800J |
Precision & Temperature Characteristics
- Resistance tolerance: ±10% to ±20% (custom tolerances available)
- Temperature coefficient: -500ppm/°C to -1500ppm/°C
- Linear expansion coefficient: 5-15ppm/°C
Applications for Carbon Composite Energy Absorbing Resistors
Primary Industries
- Power transmission systems
- Electric traction equipment
- Pulse power supplies
- Induction heating systems
- Industrial power electronics
Why Choose Our PCB Energy Absorption Resistor?
- High-frequency optimization for demanding electronic applications
- Superior pulse energy handling for industrial power systems
- Compact footprint perfect for space-constrained PCB designs
- Customizable specifications to meet specific application requirements
- Robust construction for reliable performance in harsh environments
Ordering Information
Standard Model Format: [Model][Resistance Value][Tolerance] Example: CY50R10% (50 Ohm, 10% tolerance)
Custom Capabilities
We offer flexible customization options for our carbon composite energy absorbing resistor:
- Extended resistance ranges beyond standard values
- Custom precision tolerances
- Special temperature coefficient requirements
- Modified physical dimensions
Engineering Support
Our technical team provides comprehensive support for integrating our PCB energy absorption resistor into your designs, including:
- Thermal management calculations
- Pulse energy analysis
- PCB layout recommendations
- Application-specific consulting
